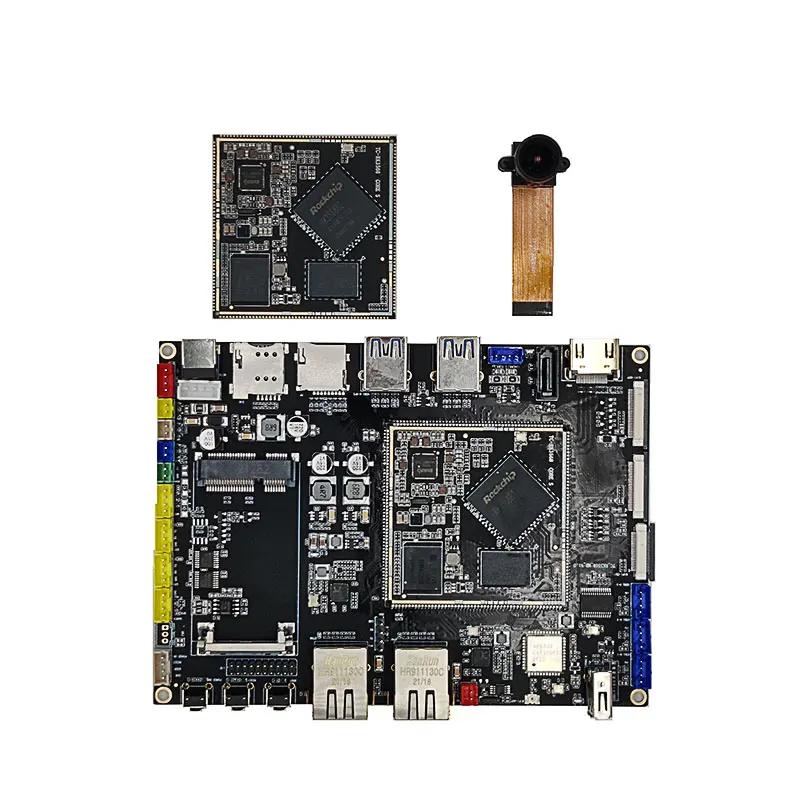

RK3568 Kernbord

Versie

Datum

Schrijver

Beschrijving

Rev.01

2022-08-04

Herziening

PIN

Core board pin definitie

Standaard functie

Standaard functiebeschrijving

IO-kracht

Padtype IO-trekkracht

1

VCC3V3_SYS

3.3V systeemvoeding

Ingangsspanning 3,3V

-

2

VCC3V3_SYS

3.3V systeemvoeding

Ingangsspanning 3,3V

-

3

GND

GND

GND

-

4

GND

GND

GND

-

5

SDMMC0_DET_L

SDMMC0_DET/SATA_CP_DET/PCIE30X1_CLKREQn_M0/GPIO0_A4_u

SDMMC0 detecteert invoer

3.3V

I/O OMHOOG

6

SDMMC0_D3

SDMMC0_D3/ARMJTAG_TMS/UART5_RTSn_M0/GPIO2_A0_u

SDMMC0-gegevenspoort

3.3V

I/O OMHOOG

7

SDMMC0_D2

SDMMC0_D2/ARMJTAG_TCK/UART5_CTSn_M0/GPIO1_D7_u

SDMMC0-gegevenspoort

3.3V

I/O OMHOOG

8

SDMMC0_D1

SDMMC0_D1/UART2_RX_M1/UART6_RX_M1/PWM9_M1/GPIO1_D6_u

SDMMC0-gegevenspoort

3.3V

I/O OMHOOG

9

SDMMC0_D0

SDMMC0_D0/UART2_TX_M1/UART6_TX_M1/PWM8_M1/GPIO1_D5_u

SDMMC0-gegevenspoort

3.3V

I/O OMHOOG

10

SDMMC0_CMD

SDMMC0_CMD/PWM10_M1/UART5_RX_M0/CAN0_TX_M1/GPIO2_A1_u

SDMMC0-opdrachtuitvoer

3.3V

I/O OMHOOG

11

SDMMC0_CLK

SDMMC0_CLK/TEST_CLKOUT/UART5_TX_M0/CAN0_RX_M1/GPIO2_A2_d

SDMMC0-klokuitvoer

3.3V

I/O OMLAAG

12

HERSTELLEN

NPOR_U

Signaaldetectie resetten

3.3V

-

13

RK809_PWRON

Inschakelen

Inschakelen signaalingang, externe verbinding power-toets, actief laag

-

14

HERSTEL

SARADC_VIN0

AD-toetsenbordinvoer

1.8V

-

15

EXT_NL

EXT_NL

PMIC Power ingeschakeld

-

16

HPR_OUT

HPR_OUT

Hoofdtelefoon recht uit

3.3V

-

17

HPL_OUT

HPL_OUT

Hoofdtelefoon weggelaten

3.3V

-

18

SPKP_OUT

SPKP_OUT

Uitspreken

5V/0,6W

-

19

SPKN_OUT

SPKN_OUT

Uitspreken-

5V/0,6W

-

20

MIC1_INN

MIC1_INN/MIC_R

MIC1_INN

3.3V

-

21

MIC1_INP

MIC1_INP/MIC_L

MIC1_INP

3.3V

-

22

HP_DET_L_GPIO3_C2

LCDC_VSYNC/VOP_BT1120_D14/SPI1_MISO_M1/UART5_TX_M1/I2S1_SDO3_M2/GPIO3_C2_d

Hoofdtelefoon detecteren

3.3V

I/O OMLAAG

23

SPK_CTL_H_GPIO3_C3

LCDC_DEN/VOP_BT1120_D15/SPI1_CLK_M1/UART5_RX_M1/I2S1_SCLK_RX_M2/GPIO3_C3_d

3.3V

I/O OMLAAG

24

VCC3V3_SD

3.3V Voeding

Uitgangsspanning 3,3 V voor SD-kaart, nominale uitgangsstroom 2A

-

25

VCC_3V3

3.3V Voeding

Uitgangsspanning 3.3V, Nominale uitgangsstroom 2A

-

26

VCC_1V8

1.8V Voeding

Uitgangsspanning 1.8V, nominale uitgangsstroom 2.5A

-

27

PDM_SDI1_M0_ADC

I2S1_SDO3_M0/I2S1_SDI1_M0/PDM_SDI1_M0/PCIE20_PERSTn_M2/GPIO1_B2_d

PDM_SDI1_M0_ADC

3.3V

IO OMLAAG

28

PDM_SDI2_M0_ADC

I2S1_SDO2_M0/I2S1_SDI2_M0/PDM_SDI2_M0/PCIE20_WAKEn_M2/ACODEC_ADC_SYNC/GPIO1_B1_d

PDM_SDI2_M0_ADC

3.3V

IO OMLAAG

29

PDM_SDI3_M0_ADC

I2S1_SDO1_M0/I2S1_SDI3_M0/PDM_SDI3_M0/PCIE20_CLKREQn_M2/ACODEC_DAC_DATAR/GPIO1_B0_d

PDM_SDI3_M0_ADC

3.3V

IO OMLAAG

30

PDM_CLK1_M0_ADC

I2S1_SCLK_RX_M0/UART4_RX_M0/PDM_CLK1_M0/SPDIF_TX_M0/GPIO1_A4_d

PDM_CLK1_M0_ADC

3.3V

IO OMLAAG

31

GMAC0_TXD0

GMAC0_TXD0/UART1_RX_M0/GPIO2_B3_u

GMAC0 verzendt gegevens

1.8V

I/O OMHOOG

32

GMAC0_TXD1

GMAC0_TXD1/UART1_TX_M0/GPIO2_B4_u

GMAC0 verzendt gegevens

1.8V

I/O OMHOOG

33

GMAC0_TXD2

SDMMC1_D3/GMAC0_TXD2/UART7_TX_M0/GPIO2_A6_u

GMAC0 verzendt gegevens

1.8V

I/O OMHOOG

34

GMAC0_TXD3

SDMMC1_CMD/GMAC0_TXD3/UART9_RX_M0/GPIO2_A7_u

GMAC0 verzendt gegevens

1.8V

I/O OMHOOG

35

GMAC0_TXEN

GMAC0_TXEN/UART1_RTSn_M0/SPI1_CLK_M0/GPIO2_B5_u

GMAC0 uitzending inschakelen

1.8V

I/O OMHOOG

36

GMAC0_TXCLK

SDMMC1_CLK/GMAC0_TXCLK/UART9_TX_M0/GPIO2_B0_d

GMAC0 zendklok

1.8V

I/O OMLAAG

37

GMAC0_RXD0

GMAC0_RXD0/UART1_CTSn_M0/SPI1_MISO_M0/GPIO2_B6_u

GMAC0 ontvangt gegevens

1.8v

I/O OMHOOG

38

GMAC0_RXD1

I2S2_SCLK_RX_M0/GMAC0_RXD1/UART6_RTSn_M0/SPI1_MOSI_M0/GPIO2_B7_d

GMAC0 ontvangt gegevens

1.8V

I/O OMLAAG

39

GMAC0_RXD2

SDMMC1_D0/GMAC0_RXD2/UART6_RX_M0/GPIO2_A3_u

GMAC0 ontvangt gegevens

1.8v

I/O OMHOOG

40

GMAC0_RXD3

SDMMC1_D1/GMAC0_RXD3/UART6_TX_M0/GPIO2_A4_u

GMAC0 ontvangt gegevens

1.8V

I/O OMHOOG

41

GMAC0_RXDV_CRS

I2S2_LRCK_RX_M0/GMAC0_RXDV_CRS/UART6_CTSn_M0/SPI1_CS0_M0/GPIO2_C0_d

GMAC0 RX data geldig signaal

1.8V

I/O OMLAAG

42

GMAC0_RXCLK

SDMMC1_D2/GMAC0_RXCLK/UART7_RX_M0/GPIO2_A5_u

GMAC0 ontvangt klok

1.8V

I/O OMHOOG

43

ETH0_REFCLKO_25M

I2S2_MCLK_M0/ETH0_REFCLKO_25M/UART7_RTSn_M0/SPI2_CLK_M0/GPIO2_C1_d

ETH0_REF KLOK OUTPUT_25MHz CPU naar PHY, Standaard NC

1.8V

I/O OMLAAG

44

GMAC0_MCLKINOUT

I2S2_SCLK_TX_M0/GMAC0_MCLKINOUT/UART7_CTSn_M0/SPI2_MISO_M0/GPIO2_C2_d

GMAC0 externe klok
invoer

1.8V

I/O OMLAAG

45

GMAC0_MDC

I2S2_LRCK_TX_M0/GMAC0_MDC/UART9_RTSn_M0/SPI2_MOSI_M0/GPIO2_C3_d

MAC0 beheerklok

1.8V

I/O OMLAAG

46

GMAC0_MDIO

I2S2_SDO_M0/GMAC0_MDIO/UART9_CTSn_M0/SPI2_CS0_M0/GPIO2_C4_d

MAC0-beheeropdracht en -gegevens

1.8V

I/O OMLAAG

47

GMAC0_RSTN_GPIO3_B7

LCDC_D21/VOP_BT1120_D12/GMAC1_TXD1_M0/I2C3_SDA_M1/PWM11_IR_M0/GPIO3_B6_d

3.3V

IO OMLAAG

48

GMAC0_INT_PMEB_GPIO3_C0

LCDC_HSYNC/VOP_BT1120_D13/SPI1_MOSI_M1/PCIE20_PERSTn_M1/I2S1_SDO2_M2/GPIO3_C1_d

3.3V

I/O OMLAAG

49

RTCTC_INT_L_GPIO0_D3

GPIO0_D3_d

RTC_IC_INT,actief laag

1.8V

I/O OMLAAG

50

I2C5_SDA_M0

LCDC_D19/VOP_BT1120_D10/GMAC1_RXER_M0/I2C5_SDA_M0/PDM_SDI1_M2/GPIO3_B4_d

I2C seriële poort 5

3.3V

I/O OMLAAG

51

I2C5_SCL_M0

LCDC_D18/VOP_BT1120_D9/GMAC1_RXDV_CRS_M0/I2C5_SCL_M0/PDM_SDI0_M2/GPIO3_B3_d

I2C seriële poort 5

3.3V

I/O OMLAAG

52

PWM3_IR

PWM3_IR/EDP_HPDIN_M1/PCIE30X1_WAKEn_M0/MCU_JTAG_TMS/GPIO0_C2_d

3.3V

I/O OMLAAG

53

CAN1_TX_M1

PWM15_IR_M1/SPI3_MOSI_M1/CAN1_TX_M1/PCIE30X2_WAKEn_M2/I2S3_SCLK_M1/GPIO4_C3_d

KAN gegevens verzenden

3.3V

I/O OMLAAG

54

CAN1_RX_M1

PWM14_M1/SPI3_CLK_M1/CAN1_RX_M1/PCIE30X2_CLKREQn_M2/I2S3_MCLK_M1/GPIO4_C2_d

KAN gegevens ontvangen

3.3V

I/O OMLAAG

55

UART2_RX_M0_DEBUG

UART2_RX_M0/GPIO0_D0_u

UART seriële poort

3.3V

I/O OMHOOG

56

UART2_TX_M0_DEBUG

UART2_TX_M0/GPIO0_D1_u

UART seriële poortgegevens verzenden voor foutopsporing

3.3V

I/O OMHOOG

57

UART3_RX_M1

LCDC_D23/PWM13_M0/GMAC1_MCLKINOUT_M0/UART3_RX_M1/PDM_SDI3_M2/GPIO3_C0_d

UART seariële poortgegevens ontvangen

3.3V

I/O OMLAAG

58

UART3_TX_M1

LCDC_D22/PWM12_M0/GMAC1_TXEN_M0/UART3_TX_M1/PDM_SDI2_M2/GPIO3_B7_d

UART-zeehavengegevens verzenden

3.3V

I/O OMLAAG

59

UART4_TX_M1

LCDC_D17/VOP_BT1120_D8/GMAC1_RXD1_M0/UART4_TX_M1/PWM9_M0/GPIO3_B2_d

UART-zeehavengegevens verzenden

3.3V

I/O OMLAAG

60

UART4_RX_M1

LCDC_D16/VOP_BT1120_D7/GMAC1_RXD0_M0/UART4_RX_M1/PWM8_M0/GPIO3_B1_d

UART seariële poortgegevens ontvangen

3.3V

I/O OMLAAG

61

UART9_RX_M1

PWM13_M1/SPI3_CS0_M1/SATA0_ACT_LED/UART9_RX_M1/I2S3_SDI_M1/GPIO4_C6_d

UART seariële poortgegevens ontvangen

3.3V

I/O OMLAAG

62

UART9_TX_M1

PWM12_M1/SPI3_MISO_M1/SATA1_ACT_LED/UART9_TX_M1/I2S3_SDO_M1/GPIO4_C5_d

UART-zeehavengegevens verzenden

3.3V

I/O OMLAAG

63

UART7_RX_M1

PWM15_IR_M0/SPDIF_TX_M1/GMAC1_MDIO_M0/UART7_RX_M1/I2S1_LRCK_RX_M2/GPIO3_C5_d

UART seariële poortgegevens ontvangen

3.3V

I/O OMLAAG

64

UART7_TX_M1

PWM14_M0/VOP_PWM_M1/GMAC1_MDC_M0/UART7_TX_M1/PDM_CLK1_M2/GPIO3_C4_d

UART-zeehavengegevens verzenden

3.3V

I/O OMLAAG

65

RS485_DIR_GPIO3_B5

LCDC_D20/VOP_BT1120_D11/GMAC1_TXD0_M0/I2C3_SCL_M1/PWM10_M0/GPIO3_B5_d

RS485-gegevensrichting

3.3V

I/O OMLAAG

66

DVP_PWREN0_H_GPIO0_B0

CLK32K_IN/CLK32K_OUT0/PCIE30X2_BUTTONRSTn/GPIO0_B0_u

3.3V

I/O OMHOOG

67

WIFI_PWREN_L_GPIO0_C1

PWM2_M0/NPUAVS/UART0_TX/MCU_JTAG_TDI/GPIO0_C1_d

3.3V

I/O OMLAAG

68

I2S3_SDI_M0

LCDC_D13/VOP_BT1120_CLK/GMAC1_TXCLK_M0/I2S3_SDI_M0/SDMMC2_CLK_M1/GPIO3_A6_d

I2S3_SDI

3.3V

I/O OMLAAG

69

I2S3_SDO_M0

LCDC_D12/VOP_BT1120_D4/GMAC1_RXD3_M0/I2S3_SDO_M0/SDMMC2_CMD_M1/GPIO3_A5_d

I2S3_SDO

3.3V

I/O OMLAAG

70

I2S3_LRCK_M0

LCDC_D11/VOP_BT1120_D3/GMAC1_RXD2_M0/I2S3_LRCK_M0/SDMMC2_D3_M1/GPIO3_A4_d

I2S3_LRCK

3.3V

I/O OMLAAG

71

I2S3_SCLK_M0

LCDC_D10/VOP_BT1120_D2/GMAC1_TXD3_M0/I2S3_SCLK_M0/SDMMC2_D2_M1/GPIO3_A3_d

I2S3_SCLK

3.3V

I/O OMLAAG

72

HOST_WAKE_BT_H_GPIO3_A2

LCDC_D9/VOP_BT1120_D1/GMAC1_TXD2_M0/I2S3_MCLK_M0/SDMMC2_D1_M1/GPIO3_A2_d

HOST_WAKE_BT

3.3V

I/O OMLAAG

73

BT_WAKE_HOST_H_GPIO3_A1

LCDC_D8/VOP_BT1120_D0/SPI1_CS0_M1/PCIE30X1_PERSTn_M1/SDMMC2_D0_M1/GPIO3_A1_d

BT_WAKE_HOST

3.3V

I/O OMLAAG

74

BT_REG_ON_H_GPIO3_A0

LCDC_CLK/VOP_BT656_CLK_M0/SPI2_CLK_M1/UART8_RX_M1/I2S1_SDO1_M2/GPIO3_A0_d

Voeding Bluetooth-module inschakelen

3.3V

I/O OMLAAG

75

UART8_RX_M0

CLK32K_OUT1/UART8_RX_M0/SPI1_CS1_M0/GPIO2_C6_d

UART seariële poortgegevens ontvangen

1,8V

I/O OMLAAG

76

UART8_TX_M0

I2S2_SDI_M0/GMAC0_RXER/UART8_TX_M0/SPI2_CS1_M0/GPIO2_C5_d

UART-zeehavengegevens verzenden

1.8V

I/O OMLAAG

77

UART8_CTSN_M0

SDMMC1_DET/I2C4_SCL_M1/UART8_CTSn_M0/CAN2_TX_M1/GPIO2_B2_u

UART8_CTSn_M0

1.8V

I/O OMLAAG

78

UART8_RTSN_M0

SDMMC1_PWREN/I2C4_SDA_M1/UART8_RTSn_M0/CAN2_RX_M1/GPIO2_B1_d

UART8_RTSn_M0

1.8V

I/O OMLAAG

79

WIFI_REG_ON_H_GPIO3_D5

CIF_D7/EBC_SDDO7/SDMMC2_PWREN_M0/I2S1_SDI3_M1/VOP_BT656_D7_M1/GPIO3_D5_d

WIFI_REG inschakelen

1.8V

I/O OMLAAG

80

WIFI_WAKE_HOST_H_GPIO3_D4

CIF_D6/EBC_SDDO6/SDMMC2_DET_M0/I2S1_SDI2_M1/VOP_BT656_D6_M1/GPIO3_D4_d

WIFI wake-up host

1.8V

I/O OMLAAG

81

SDMMC2_CLK_M0

CIF_D5/EBC_SDDO5/SDMMC2_CLK_M0/I2S1_SDI1_M1/VOP_BT656_D5_M1/GPIO3_D3_d

SDMMC2-klok

1.8V

I/O OMLAAG

82

SDMMC2_CMD_M0

CIF_D4/EBC_SDDO4/SDMMC2_CMD_M0/I2S1_SDI0_M1/VOP_BT656_D4_M1/GPIO3_D2_d

SDMMC2-opdracht

1.8V

I/O OMLAAG

83

SDMMC2_D3_M0

CIF_D3/EBC_SDDO3/SDMMC2_D3_M0/I2S1_SDO0_M1/VOP_BT656_D3_M1/GPIO3_D1_d

SDMMC2-gegevens

1.8V

I/O OMLAAG

84

SDMMC2_D2_M0

CIF_D2/EBC_SDDO2/SDMMC2_D2_M0/I2S1_LRCK_TX_M1/VOP_BT656_D2_M1/GPIO3_D0_d

SDMMC2-gegevens

1.8V

I/O OMLAAG

85

SDMMC2_D1_M0

CIF_D1/EBC_SDDO1/SDMMC2_D1_M0/I2S1_SCLK_TX_M1/VOP_BT656_D1_M1/GPIO3_C7_d

SDMMC2-gegevens

1.8V

I/O OMLAAG

86

SDMMC2_D0_M0

CIF_D0/EBC_SDDO0/SDMMC2_D0_M0/I2S1_MCLK_M1/VOP_BT656_D0_M1/GPIO3_C6_d

SDMMC2-gegevens

1.8V

I/O OMLAAG

87

GMAC1_INT/PMEB_GPIO3_A7

LCDC_D14/VOP_BT1120_D5/GMAC1_RXCLK_M0/SDMMC2_DET_M1/GPIO3_A7_d

3.3V

I/O OMLAAG

88

GMAC1_RSTN_GPIO3_B0

LCDC_D15/VOP_BT1120_D6/ETH1_REFCLKO_25M_M0/SDMMC2_PWREN_M1/GPIO3_B0_d

3.3V

I/O OMLAAG

89

GMAC1_MDIO_M1

IF_VSYNC/EBC_SDOE/GMAC1_MDIO_M1/I2S2_SCLK_TX_M1/GPIO4_B7_d

GMAC1 beheeropdracht en gegevens

1.8V

I/O OMLAAG

90

GMAC1_MDC_M1

CIF_HREF/EBC_SDLE/GMAC1_MDC_M1/UART1_RTSn_M1/I2S2_MCLK_M1/GPIO4_B6_d

GMAC1 beheerklok

1.8V

I/O OMLAAG

91

GMAC1_MCLKINOUT_M1

CIF_CLKIN/EBC_SDCLK/GMAC1_MCLKINOUT_M1/UART1_CTSn_M1/I2S2_SCLK_RX_M1/GPIO4_C1_d

GMAC1 externe klok
invoer

1.8V

I/O OMLAAG

92

ETH1_REFCLKO_25M_M1

I2C4_SCL_M0/EBC_GDOE/ETH1_REFCLKO_25M_M1/SPI3_CLK_M0/I2S2_SDO_M1/GPIO4_B3_d

ETH1 Klokuitgang

1.8V

I/O OMLAAG

93

GMAC1_RXCLK_M1

CIF_D13/EBC_SDDO13/GMAC1_RXCLK_M1/UART7_RX_M2/PDM_SDI3_M1/GPIO4_A3_d

GMAC1 ontvangt klok

1.8V

I/O OMLAAG

94

GMAC1_RXDV_CRS_M1

ISP_PRELIGHT_TRIG/EBC_SDCE3/GMAC1_RXDV_CRS_M1/I2S1_SDO2_M1/GPIO4_B1_d

GMAC1 RX data geldig signaal

1.8V

I/O OMLAAG

95

GMAC1_RXD3_M1

CIF_D12/EBC_SDDO12/GMAC1_RXD3_M1/UART7_TX_M2/PDM_SDI2_M1/GPIO4_A2_d

GMAC1 ontvangt gegevens

1.8V

I/O OMLAAG

96

GMAC1_RXD2_M1

CIF_D11/EBC_SDDO11/GMAC1_RXD2_M1/PDM_SDI1_M1/GPIO4_A1_d

GMAC1 ontvangt gegevens

1.8V

I/O OMLAAG

97

GMAC1_RXD1_M1

CAM_CLKOUT1/EBC_SDCE2/GMAC1_RXD1_M1/SPI3_MISO_M0/I2S1_SDO1_M1/GPIO4_B0_d

GMAC1 ontvangt gegevens

1.8V

I/O OMLAAG

98

GMAC1_RXD0_M1

CAM_CLKOUT0/EBC_SDCE1/GMAC1_RXD0_M1/SPI3_CS1_M0/I2S1_LRCK_RX_M1/GPIO4_A7_d

GMAC1 ontvangt gegevens

1.8V

I/O OMLAAG

99

GMAC1_TXCLK_M1

CIF_D10/EBC_SDDO10/GMAC1_TXCLK_M1/PDM_CLK1_M1/GPIO4_A0_d

GMAC1 zendt klok uit

1.8V

I/O OMLAAG

100

GMAC1_TXEN_M1

ISP_FLASHTRIGOUT/EBC_SDCE0/GMAC1_TXEN_M1/SPI3_CS0_M0/I2S1_SCLK_RX_M1/GPIO4_A6_d

GMAC1 uitzending inschakelen

1.8V

I/O OMLAAG

101

GMAC1_TXD3_M1

CIF_D9/EBC_SDDO9/GMAC1_TXD3_M1/UART1_RX_M1/PDM_SDI0_M1/GPIO3_D7_d

GMAC1 verzendt gegevens

1.8V

I/O OMLAAG

102

GMAC1_TXD2_M1

CIF_D8/EBC_SDDO8/GMAC1_TXD2_M1/UART1_TX_M1/PDM_CLK0_M1/GPIO3_D6_d

GMAC1 verzendt gegevens

1.8V

I/O OMLAAG

103

GMAC1_TXD1_M1

CIF_D15/EBC_SDDO15/GMAC1_TXD1_M1/UART9_RX_M2/I2S2_LRCK_RX_M1/GPIO4_A5_d

GMAC1 verzendt gegevens

1.8V

I/O OMLAAG

104

GMAC1_TXD0_M1

CIF_D14/EBC_SDDO14/GMAC1_TXD0_M1/UART9_TX_M2/I2S2_LRCK_TX_M1/GPIO4_A4_d

GMAC1 verzendt gegevens

1.8V

I/O OMLAAG

105

TP_RST_L_GPIO0_B6

I2C2_SDA_M0/SPI0_MOSI_M0/PCIE20_PERSTn_M0/PWM2_M1/GPIO0_B6_u

Aanraakscherm resetten

3.3V

I/O OMHOOG

106

TP_INT_L_GPIO0_B5

I2C2_SCL_M0/SPI0_CLK_M0/PCIE20_WAKEn_M0/PWM1_M1/GPIO0_B5_u

Touchpanel onderbreekt gegevensinvoer

3.3V

I/O OMHOOG

107

I2C1_SDA_TP

I2C1_SDA/CAN0_RX_M0/PCIE20_BUTTONRSTn/MCU_JTAG_TCK/GPIO0_B4_u

I2C seriële poort 1

3.3V

I/O OMHOOG

108

I2C1_SCL_TP

I2C1_SCL/CAN0_TX_M0/PCIE30X1_BUTTONRSTn/MCU_JTAG_TDO/GPIO0_B3_u

I2C seriële poort 1

3.3V

I/O OMHOOG

109

I2C3_SCL_M0

I2C3_SCL_M0/UART3_TX_M0/CAN1_TX_M0/AUDIOPWM_LOUT_N/ACODEC_ADC_CLK/GPIO1_A1_u

I2C seriële poort 3

3.3V

I/O OMHOOG

110

I2C3_SDA_M0

I2C3_SDA_M0/UART3_RX_M0/CAN1_RX_M0/AUDIOPWM_LOUT_P/ACODEC_ADC_DATA/GPIO1_A0_u

I2C seriële poort 3

3.3V

I/O OMHOOG

111

I2C2_SCL_M1

I2C2_SCL_M1/EBC_SDSHR/CAN2_TX_M0/I2S1_SDO3_M1/GPIO4_B5_d

I2C seriële poort 2

1.8V

I/O OMLAAG

112

I2C2_SDA_M1

I2C2_SDA_M1/EBC_GDSP/CAN2_RX_M0/ISP_FLASH_TRIGIN/VOP_BT656_CLK_M1/GPIO4_B4_d

I2C seriële poort 2

1.8V

I/O OMLAAG

113

MIPI_CAM1_PDN_L_GPIO3_D3

LCDC_D1/VOP_BT656_D1_M0/SPI0_MOSI_M1/PCIE20_WAKEn_M1/I2S1_SCLK_TX_M2/GPIO2_D1_d

Camera1 uitgeschakeld

3.3V

I/O OMLAAG

114

MIPI_CAM1_RST_L_GPIO3_D2

LCDC_D0/VOP_BT656_D0_M0/SPI0_MISO_M1/PCIE20_CLKREQn_M1/I2S1_MCLK_M2/GPIO2_D0_d

Camera1 gereset

3.3V

I/O OMLAAG

115

MIPI_CAM0_RST_L_GPIO3_D4

LCDC_D2/VOP_BT656_D2_M0/SPI0_CS0_M1/PCIE30X1_CLKREQn_M1/I2S1_LRCK_TX_M2/GPIO2_D2_d

Camera0 gereset

3.3V

I/O OMLAAG

116

MIPI_CAM0_PDN_L_GPIO3_D5

LCDC_D3/VOP_BT656_D3_M0/SPI0_CLK_M1/PCIE30X1_WAKEn_M1/I2S1_SDI0_M2/GPIO2_D3_d

Camera0 uitgeschakeld

3.3V

I/O OMLAAG

117

USB2_HOST2_DM

USB2_HOST2_DM

USB2_HOST2_DM

3.3V

-

118

USB2_HOST2_DP

USB2_HOST2_DP

USB2_HOST2_DP

3.3V

-

119

USB2_HOST3_DM

USB2_HOST3_DM

USB2_HOST3_DM

3.3V

-

120

USB2_HOST3_DP

USB2_HOST3_DP

USB2_HOST3_DP

3.3V

-

121

REFCLK_OUT

REFCLK_OUT/GPIO0_A0_d

Klokuitgang voor camera

3.3V

I/O OMLAAG

122

CIF_CLKOUT

CIF_CLKOUT/EBC_GDCLK/PWM11_IR_M1/GPIO4_C0_d

CIF klok uit

1.8V

I/O OMLAAG

123

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

1.8V

-

124

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

1.8V

-

125

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

1.8V

-

126

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

1.8V

-

127

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

1.8V

-

128

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

1.8V

-

129

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

1.8V

-

130

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

1.8V

-

131

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

1.8V

-

132

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

1.8V

-

133

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

MIPI_CSI_RX_D0P

1.8V

-

134

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

1.8V

-

135

LCD1_PWREN_H_GPIO0_C5

PWM6/SPI0_MISO_M0/PCIE30X2_WAKEn_M0/GPIO0_C5_d

LCD-voeding inschakelen

3.3V

I/O OMLAAG

136

LCD1_BL_PWM5

PWM5/SPI0_CS1_M0/UART0_RTSn/GPIO0_C4_d

LCD-achtergrondverlichting PWM

3.3V

I/O OMLAAG

137

LCD1_BL_PWM4

PWM4/VOP_PWM_M0/PCIE30X1_PERSTn_M0/MCU_JTAG_TRSTn/GPIO0_C3_d

LCD-achtergrondverlichting PWM

3.3V

I/O OMLAAG

138

LCD0_PWREN_H_GPIO0_C7

HDMITX_CEC_M1/PWM0_M1/UART0_CTSn/GPIO0_C7_d

LCD-voeding inschakelen

3.3V

I/O OMLAAG

139

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

1.8V

-

140

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

MIPI_DSI_TX0_D3P/LVDS_TX0_D3N

1.8V

-

141

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

MIPI_DSI_TX0_D3P/LVDS_TX0_D2P

1.8V

-

142

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

MIPI_DSI_TX0_D3P/LVDS_TX0_D2N

1.8V

-

143

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKP

1.8V

-

144

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

MIPI_DSI_TX0_D3P/LVDS_TX0_CLKN

1.8V

-

145

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

MIPI_DSI_TX0_D3P/LVDS_TX0_D1P

1.8V

-

146

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

MIPI_DSI_TX0_D3P/LVDS_TX0_D1N

1.8V

-

147

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

MIPI_DSI_TX0_D3P/LVDS_TX0_D0P

1.8V

-

148

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

MIPI_DSI_TX0_D3P/LVDS_TX0_D0N

1.8V

-

149

HDMI_TXCLKN_PORT

HDMI_TX_CLKN

HDMI_TX2CLKN_PORT, en serieweerstand 2.2R

1.8V

-

150

HDMI_TXCLKP_PORT

HDMI_TX_CLKP

HDMI_TXCLKP_PORT, en serieweerstand 2.2R

1.8V

-

151

HDMI_TX0N_PORT

HDMI_TX_D0N

HDMI_TX0N_PORT, en serieweerstand 2.2R

1.8V

-

152

HDMI_TX0P_PORT

HDMI_TX_D0P

HDMI_TX0P_PORT, en serieweerstand 2.2R

1.8V

-

153

HDMI_TX1N_PORT

HDMI_TX_D1N

HDMI_TX1N_PORT, en serieweerstand 2.2R

1.8V

-

154

HDMI_TX1P_PORT

HDMI_TX_D1P

HDMI_TX1P_PORT, en serieweerstand 2.2R

1.8V

-

155

HDMI_TX2N_PORT

HDMI_TX_D2N

HDMI_TX2N_PORT, en serieweerstand 2.2R

1.8V

-

156

HDMI_TX2P_PORT

HDMI_TX_D2P

HDMI_TX2P_PORT, en serieweerstand 2.2R

1.8V

-

157

HDMITX_SCL

HDMITX_SCL/I2C5_SCL_M1/GPIO4_C7_u

I2C seriële poort voor HDMI

3.3V

I/O OMHOOG

158

HDMITC_SDA

HDMITX_SDA/I2C5_SDA_M1/GPIO4_D0_u

I2C seriële poort voor HDMI

3.3V

I/O OMHOOG

159

HDMITX_CEC_M0

HDMITX_CEC_M0/SPI3_CS1_M1/GPIO4_D1_u

HDMITX_CEC

3.3V

I/O OMHOOG

160

HDMI_TX_HPDIN

HDMI_TX_HPDIN

HDMI_TX hot-pluggable

1.8V

-

161

PCIE30X2_CLKREQN_M1

LCDC_D4/VOP_BT656_D4_M0/SPI2_CS1_M1/PCIE30X2_CLKREQn_M1/I2S1_SDI1_M2/GPIO2_D4_d

PCIE30X2_CLKREQn

3.3

I/O OMLAAG

162

PCIE30X2_WAKEN_M1

LCDC_D5/VOP_BT656_D5_M0/SPI2_CS0_M1/PCIE30X2_WAKEn_M1/I2S1_SDI2_M2/GPIO2_D5_d

PCIE30X2_WAKEn

3.3V

I/O OMLAAG

163

PCIE30X2_PERSTN_M1

LCDC_D6/VOP_BT656_D6_M0/SPI2_MOSI_M1/PCIE30X2_PERSTn_M1/I2S1_SDI3_M2/GPIO2_D6_d

PCIE30X2-reset

3.3V

I/O OMLAAG

164

PCIE30X2_PRSNT_L_GPIO2_D7

LCDC_D7/VOP_BT656_D7_M0/SPI2_MISO_M1/UART8_TX_M1/I2S1_SDO0_M2/GPIO2_D7_d

PCIE30X2 wake-host

3.3V

I/O OMLAAG

165

PCIE_PWREN_H_GPIO0_D4

GPIO0_D4_d

PCIE-voeding inschakelen

1.8V

I/O OMLAAG

166

PCIE30_RX1N

PCIE30_RX1N

PCIE30_RX1N

1.8V

-

167

PCIE30_RX1P

PCIE30_RX1P

PCIE30_RX1P

1.8V

-

168

PCIE30_RX0N

PCIE30_RX0N

PCIE30_RX0N

1.8V

-

169

PCIE30_RX0P

PCIE30_RX0P

PCIE30_RX0P

1.8V

-

170

PCIE30_TX1N

PCIE30_TX1N

PCIE30_TX1N

1.8V

-

171

PCIE30_TX1P

PCIE30_TX1P

PCIE30_TX1P

1.8V

-

172

PCIE30_TX0N

PCIE30_TX0N

PCIE30_TX0N

1.8V

-

173

PCIE30_TX0P

PCIE30_TX0P

PCIE30_TX0P

1.8V

-

174

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

1.8V

-

175

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

1.8V

-

176

PCIE20_REFCLKN

PCIE20_REFCLKN

PCIE20_REFCLKN

1.8V

-

177

PCIE20_REFCLKP

PCIE20_REFCLKP

PCIE20_REFCLKP

1.8V

-

178

SATA2_RXN

PCIE20_RXN/SATA2_RXN/QSGMII_RXN_M1

SATA2_RXN

1.8V

-

179

SATA2_RXP

PCIE20_RXP/SATA2_RXP/QSGMII_RXP_M1

SATA2_RXP

1.8V

-

180

SATA2_TXN

PCIE20_TXN/SATA2_TXN/QSGMII_TXN_M1

SATA2_TXN

1.8V

-

181

SATA2_TXP

PCIE20_TXP/SATA2_TXP/QSGMII_TXP_M1

SATA2_TXP

1.8V

-

182

SATA2_ACT_LED

EDP_HPDIN_M0/SPDIF_TX_M2/SATA2_ACT_LED/PCIE30X2_PERSTn_M2/I2S3_LRCK_M1/GPIO4_C4_d

SATA actief aangeven

3.3V

I/O OMLAAG

183

USB3_HOST1_SSTXP

USB3_HOST1_SSTXP/SATA1_TXP/QSGMII_TXP_M0

USB3_HOST1_SSTXP

1.8V

-

184

USB3_HOST1_SSTXN

USB3_HOST1_SSTXN/SATA1_TXN/QSGMII_TXN_M0

USB3_HOST1_SSTXN

1.8V

-

185

USB3_HOST1_SSRXP

USB3_HOST1_SSRXP/SATA1_RXP/QSGMII_RXP_M0

USB3_HOST1_SSRXP

1.8V

-

186

USB3_HOST1_SSRXN

USB3_HOST1_SSRXN/SATA1_RXN/QSGMII_RXN_M0

USB3_HOST1_SSRXN

1.8V

-

187

USB3_HOST1_DM

USB3_HOST1_DM

USB3_HOST1_DM

3.3V

-

188

USB3_HOST1_DP

USB3_HOST1_DP

USB3_HOST1_DP

3.3V

-

189

USB3_OTG0_SSTXP

USB3_OTG0_SSTXP/SATA0_TXP

USB3_OTG0_SSTXP

1.8V

-

190

USB3_OTG0_SSTXN

USB3_OTG0_SSTXN/SATA0_TXN

USB3_OTG0_SSTXN

1.8V

-

191

USB3_OTG0_SSRXP

USB3_OTG0_SSRXP/SATA0_RXP

USB3_OTG0_SSRXP

1.8V

-

192

USB3_OTG0_SSRXN

USB3_OTG0_SSRXN/SATA0_RXN

USB3_OTG0_SSRXN

1.8V

-

193

USB3_OTG0_DM

USB3_OTG0_DM

USB3_OTG0_DM

3.3V

-

194

USB3_OTG0_DP

USB3_OTG0_DP

USB3_OTG0_DP

3.3V

-

195

USB3_OTG0_ID

USB3_OTG0_ID

USB3_OTG0_ID

3.3V

-

196

USB3_OTG0_VBUSDET

USB3_OTG0_VBUSDET

USB3_OTG0_VBUS detecteren

3.3V

-

197

USB_HOST_PWREN_H_GPIO0_A6

GPU_PWREN/SATA_CP_POD/PCIE30X2_CLKREQn_M0/GPIO0_A6_d

USB-hostvoeding inschakelen

3.3V

I/O OMLAAG

198

USB_OTG_PWREN_H_GPIO0_A5

SDMMC0_PWREN/SATA_MP_SWITCH/PCIE20_CLKREQn_M0/GPIO0_A5_d

USB OTG-voeding inschakelen

3.3V

I/O OMLAAG

199

DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

MIPI_DSI_TX1_D3N/EDP_TX_D3N

1.8V

-

200

DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

MIPI_DSI_TX1_D3P/EDP_TX_D3P

1.8V

-

201

DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

MIPI_DSI_TX1_D2N/EDP_TX_D2N

1.8V

-

202

DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

MIPI_DSI_TX1_D2P/EDP_TX_D2P

1.8v

-

203

DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

MIPI_DSI_TX1_D1N/EDP_TX_D1N

1.8V

-

204

DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

MIPI_DSI_TX1_D1P/EDP_TX_D1P

1.8V

-

205

DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

MIPI_DSI_TX1_D0N/EDP_TX_D0N

1.8V

-

206

DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

MIPI_DSI_TX1_D0P/EDP_TX_D0P

1.8V

-

207

DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

MIPI_DSI_TX1_CLKN/EDP_TX_AUN

1.8V

-

208

DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

MIPI_DSI_TX1_CLKP/EDP_TX_AUP

1.8V

-

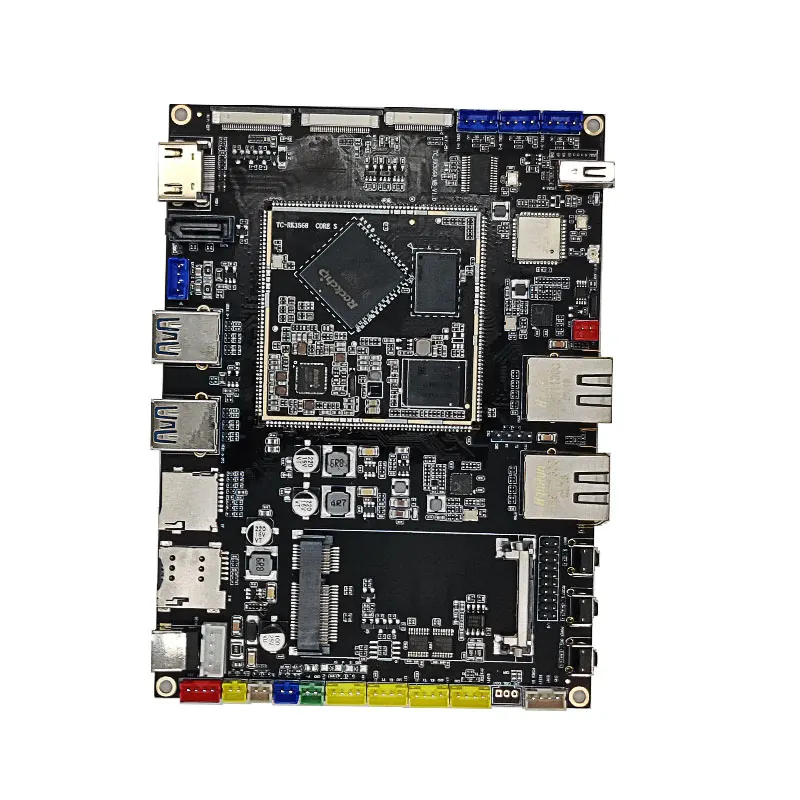

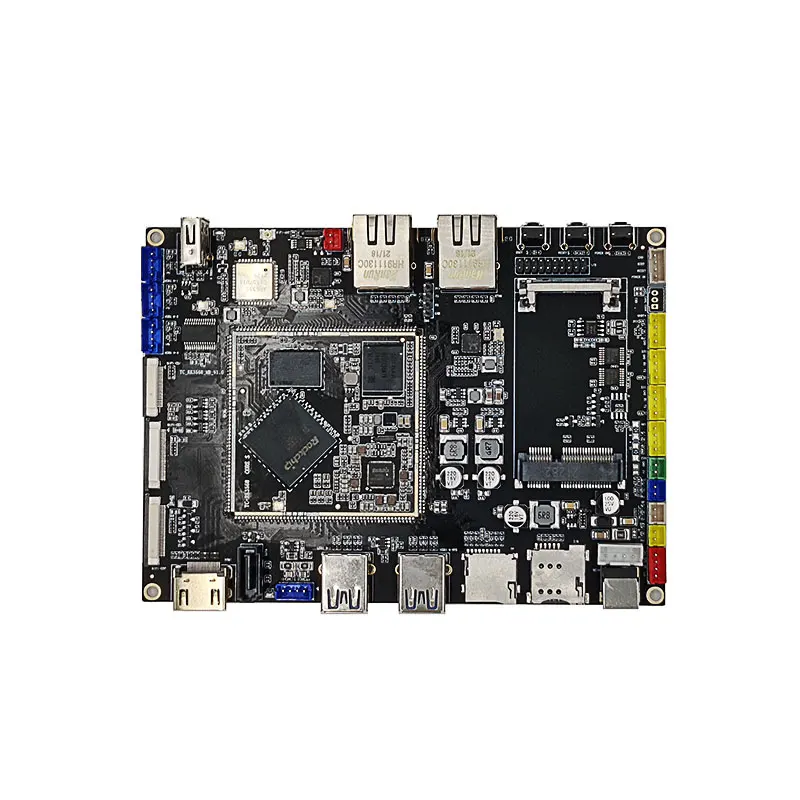

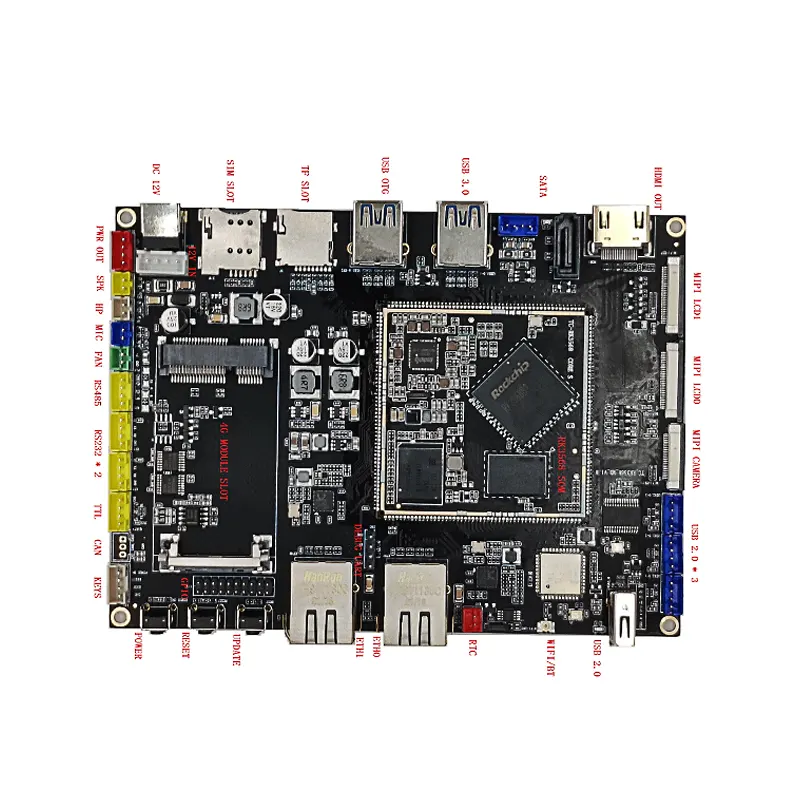

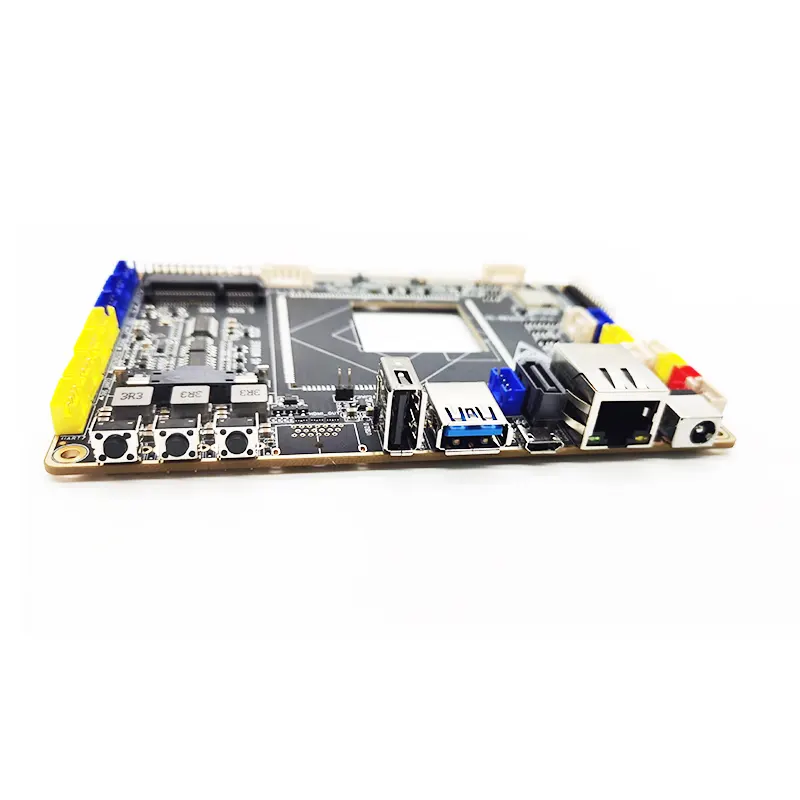

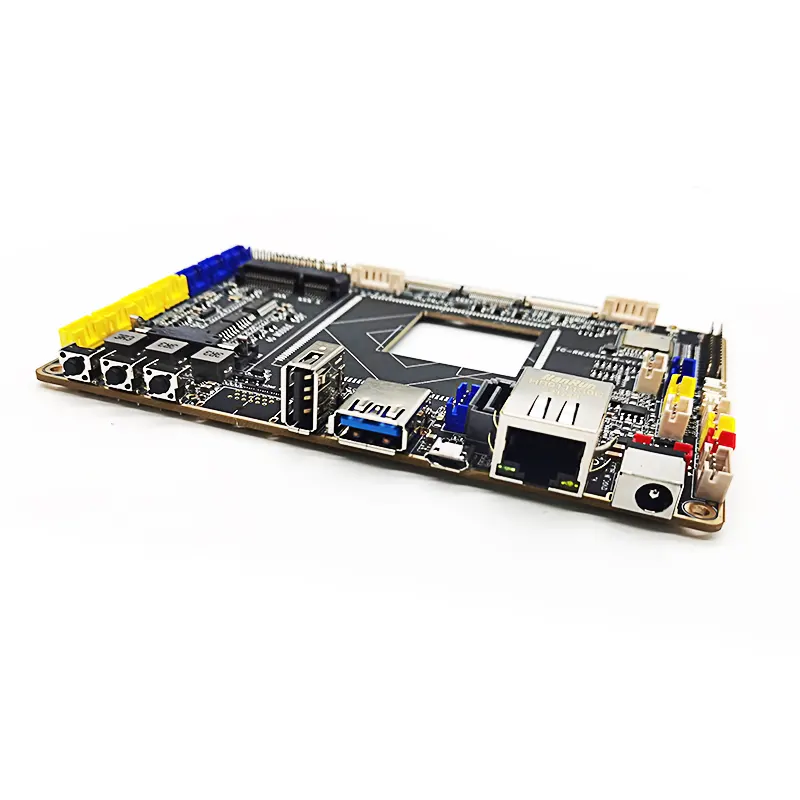

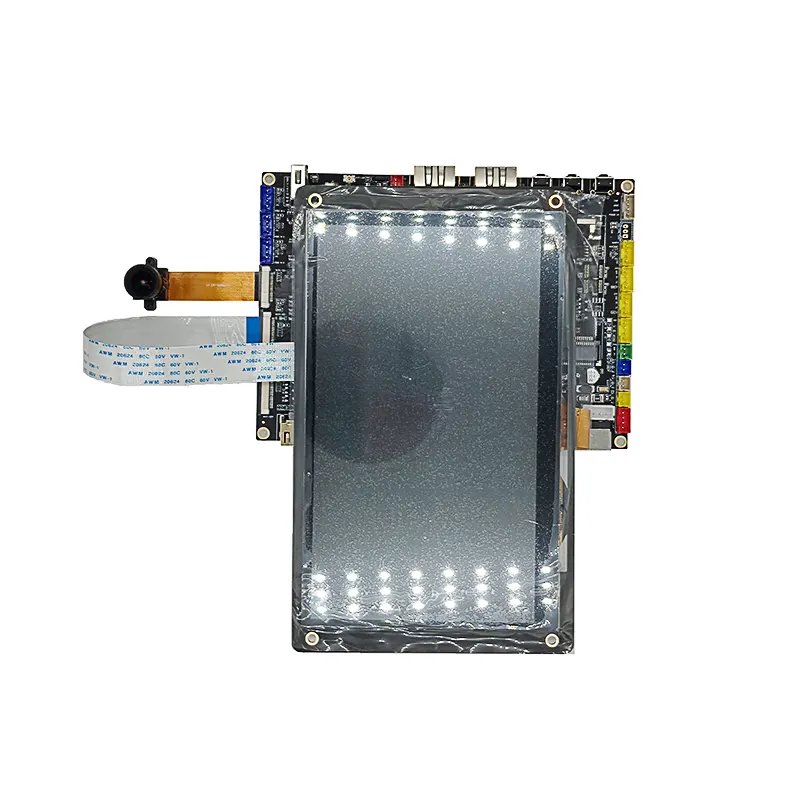

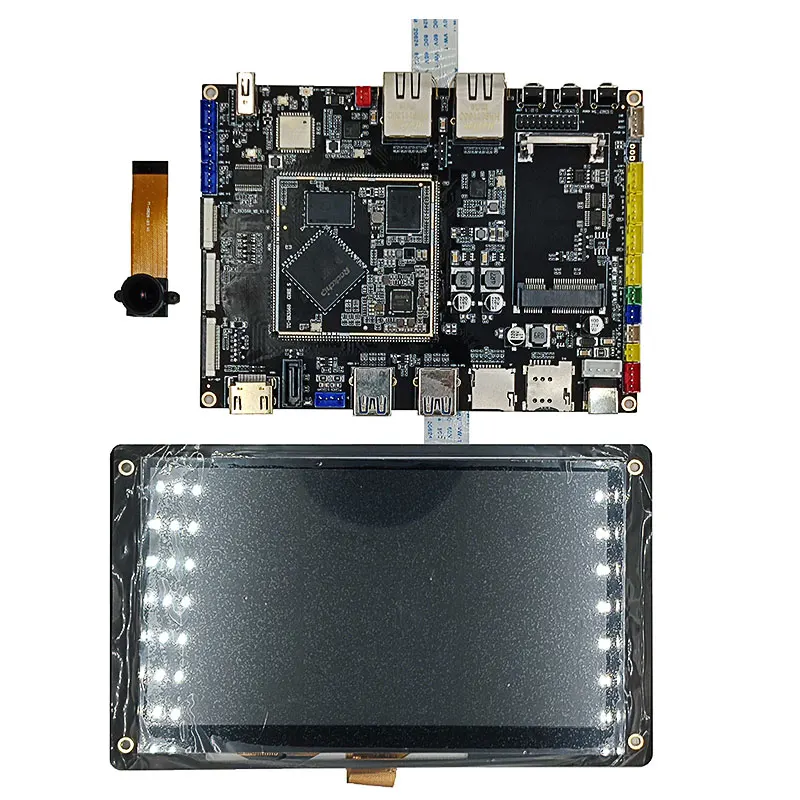

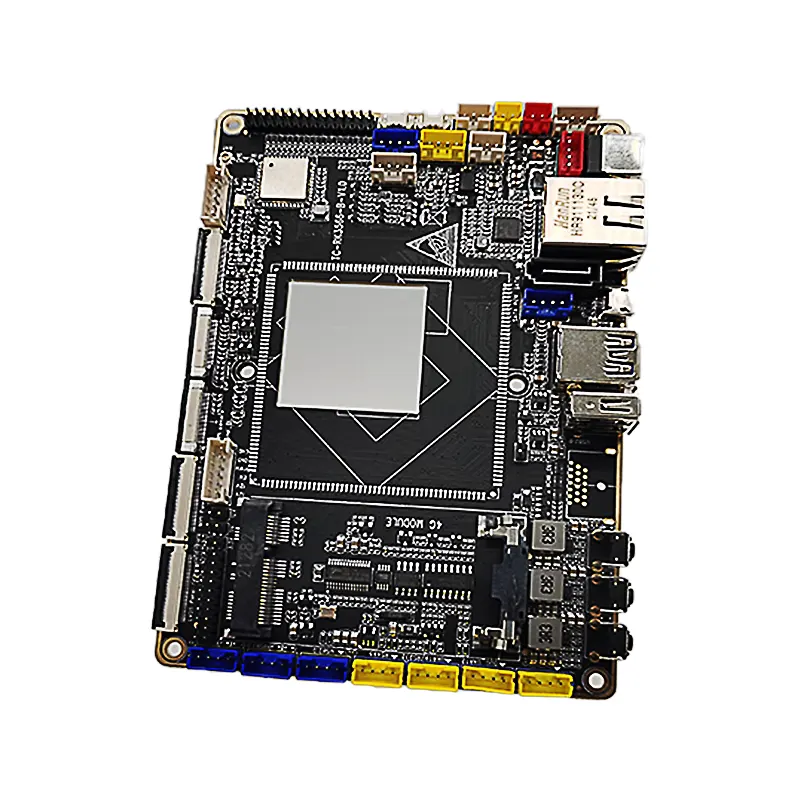

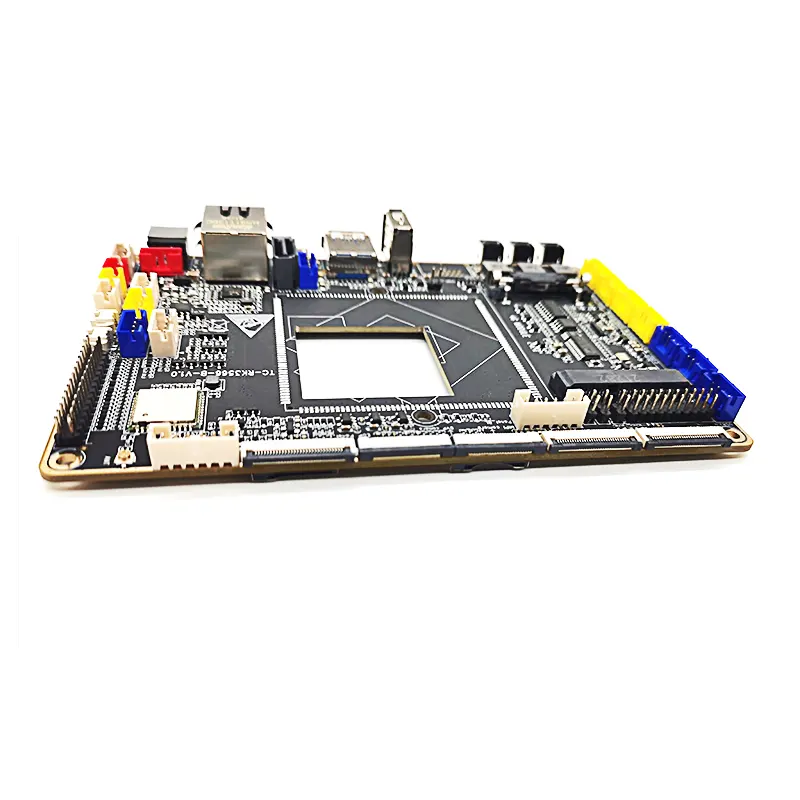

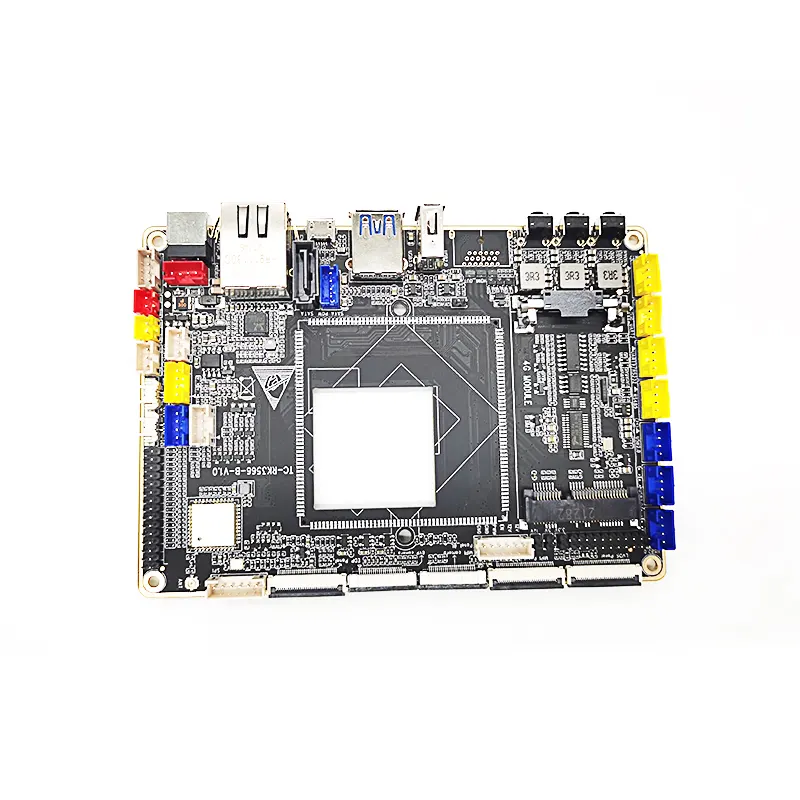

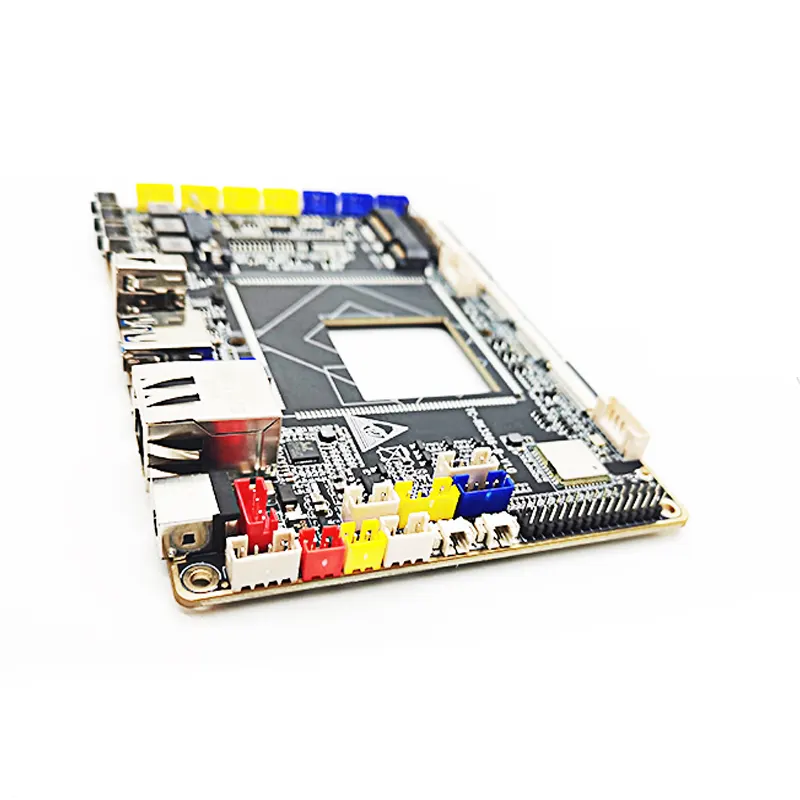

Interfaces Beschrijving

NEE.

Naam

ã1ã

DC 12V-ingang / 4-pins 2,54 mm 12V-ingang

ã2ã

4G-module simkaartsleuf

ã3ã

TF-kaartsleuf

ã4ã

USB-OTG

ã5ã

USB3.0 HOST

ã6ã

SATA-gegevens

ã7ã

HDMI-uitgang

ã8ã

MIPI-LCD1

ã9ã

MIPI LCD0

ã10ã

MIPI-camera

ã11ã

USB2.0 * 3

ã12ã

USB2.0 type A

ã13ã

WIFI/BT(AP6335)

ã14ã

RTC

ã15ã

ETH0

ã16ã

ETH1

ã17ã

Sleutel bijwerken

ã18ã

Reset-toets

ã19ã

Power-toets

ã20ã

Sleutels (4pin 2.0mm)

ã21ã

KAN (3pin 2.0mm)

ã22ã

Uart TTL (4-pins 2,0 mm)

ã23ã

RS232 * 2 (4-pins 2,0 mm)

ã24ã

RS485 (4-polig 2,0 mm)

ã25ã

VENTILATOR (2-pins 2,0 mm)

ã26ã

MICROFOON (2-pins 2,0 mm)

ã27ã

HP (2-pins 2,0 mm)

ã28ã

SPK (2-pins 2,0 mm)

ã29ã

Stroom uit (4-pins 2,0 mm)

ã30ã

Foutopsporing Uart (4-pins 2,0 mm)

ã31ã

GPIO (2*10pin 2,0mm)

ã32ã

4G-modulesleuf (PCIE-poort)

ã33ã

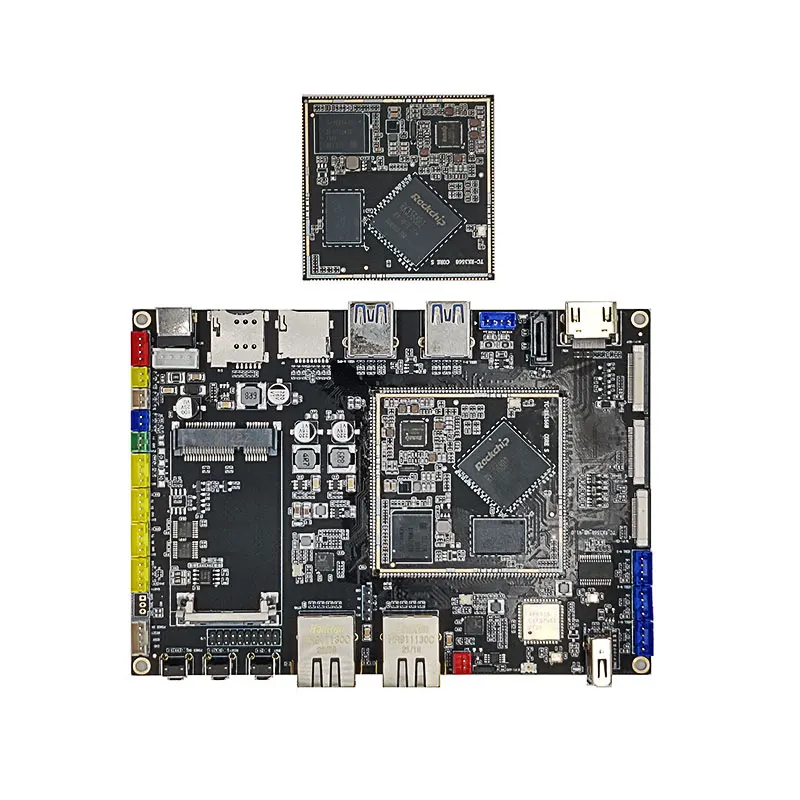

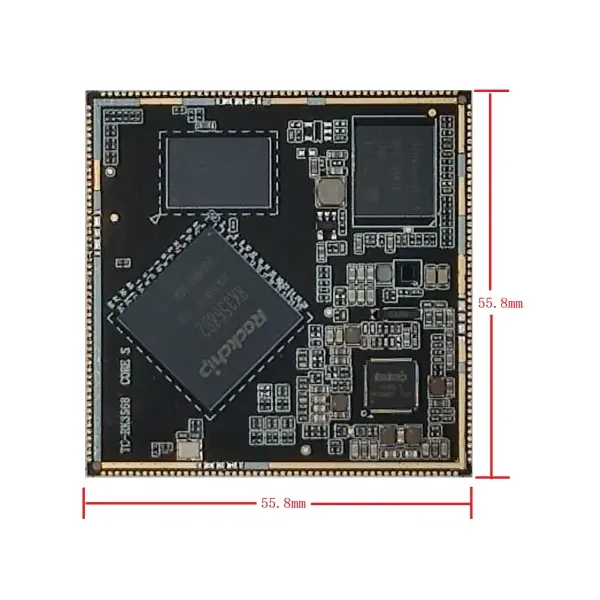

RK3568 SOM
